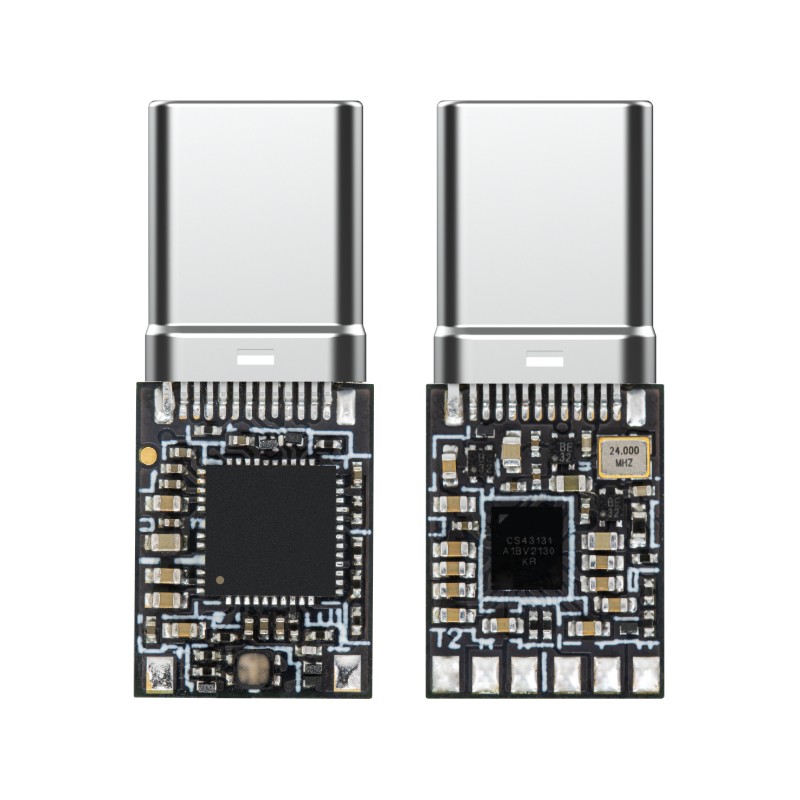

TT39510B01
Main Chip: CS43131, DAC: 32Bit/384KHz, DSD64, 128, 256 hard decode.
Stereo single-ended audio output
Adaptive 16 ~ 600 ohm headphones, maximum drive voltage 2V
Low jitter audio special active crystal
Low noise LDO independent power supply design
THD+N:-100dB@ 32Ω
SNR: 120dB@ 32Ω
DNR:120dB@ 32Ω
Widely compatible with Android, Hongmeng, Apple and Windows systems
Product Detail
The TT39510B01 is a USB-C HiFi digital audio module that supports EQ adjustment and recording call line control.
Built-in high-performance USB audio bridge chip CB5100 and HiFi DAC decoder chip CS43131, decoding up to PCM 384kHz/32bit and DSD64/DSD128/DSD256.
In addition to the integrated USB-IIS/DoP audio bridging function, the USB audio bridge chip CB5100 further integrates high-performance DSP/ADC/PGA, supports 8-band EQ flexible adjustment configuration, and supports recording/talking/line control functions;
It greatly enriches and enhances the usage scenario and experience of HiFi digital audio products.
Output load adaptive, can be adapted to various types of impedance headphones. Optional headphone insertion detection function, optional standby/PCM/DSD status indicator effect.
The module has excellent compatibility, compatible with Android, Hongmeng, Windows 10/11, iOS, MacOS and other mainstream system devices.
