TT39131C01-Pro
Main Chip: CS43131, DAC: 32Bit/384KHz, DSD64, 128, 256 hard decode.
3.5mm audio output connector
DSD, PCM different music formats indicator recognition
Built-in amplifier, drive power selectable
Knob type infinitely adjustable volume
Dedicated low noise audio LDO independent power supply
Dual active audio special low-jitter crystal oscillator
Widely compatible with Android, Hongmeng, Apple and Windows systems
Product Detail

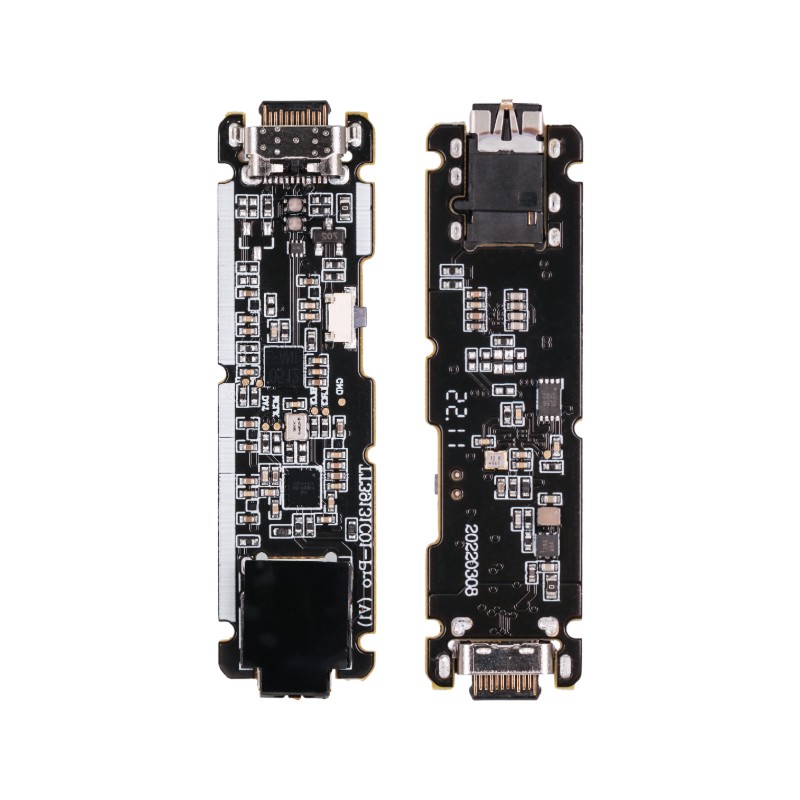

TT39131C01-Pro is a HiFi digital audio headphone adapter board PCBA solution.
Built-in USB audio bridge chip and low-power high-performance DAC decoder chip, supports up to PCM 384KHz/32bit and DSD64/DSD128/DSD256 digital audio encoding and decoding.
Ultra-low noise power supply and high-precision femtosecond crystal oscillator are selected to further enhance the performance parameters and sound quality.
With headphone insertion detection, the output load is adaptive to 16Ω~600Ω, which can be perfectly adapted to all kinds of headphones. With play/pause button, convenient to listen to the song control; with PCM and DSD light effects.
Excellent cell phone compatibility, verified to support PC, Huawei P40 pro, Xiaomi 10 Pro, Samsung S22, Google Pixel 6 and iPad Pro.
