TTGK25384
Main Chip: CS43131*2, DAC: 32Bit/384KHz, DSD64, 128, 256 hard decode.
2.5mm audio output connector
Dual CS43131 left and right channel true balanced outputs
DSD, PCM different music formats indicator recognition
Built-in amplifier, drive power selectable
Push-button volume adjustment
Pause, play, cut song independent button design
Dedicated low noise audio LDO independent power supply
Dual active audio crystals with special low jitter are widely compatible with Android, Harmony OS, Apple and Windows systems.
Product Detail

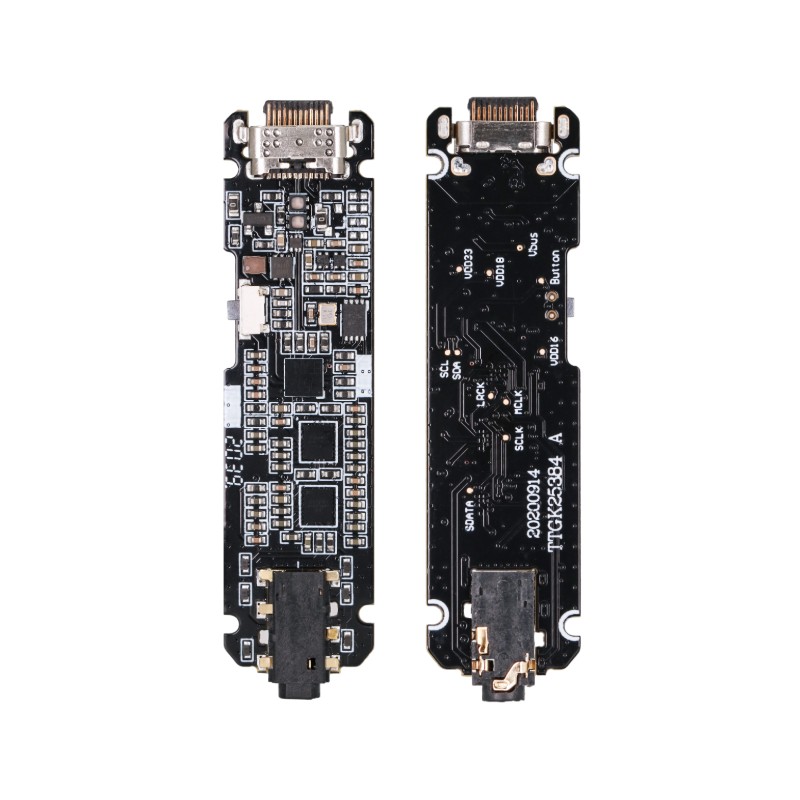

TTGK25384 is a HiFi digital audio headphone adapter board PCBA solution.
Built-in USB audio bridge chip SA9312 and dual low-power high-performance DAC decoder chip CS43131, supports up to PCM 384KHz/32bit and DSD256 digital audio codec.
2.5mm 4-section headphone fully balanced output, load support 16Ω~600Ω, can be perfectly adapted to various types of headphones.
With play/pause button, easy to listen to the song control; with PCM and DSD light effects.
Excellent cell phone compatibility, verified to support PC, Huawei P40pro, Xiaomi 10 Pro, Samsung S20 and iPad Pro.
